TMS320VC5401PGE50
Manufacturer:
Texas Instruments
Mfr.Part #:
TMS320VC5401PGE50
Datasheet:
Description:

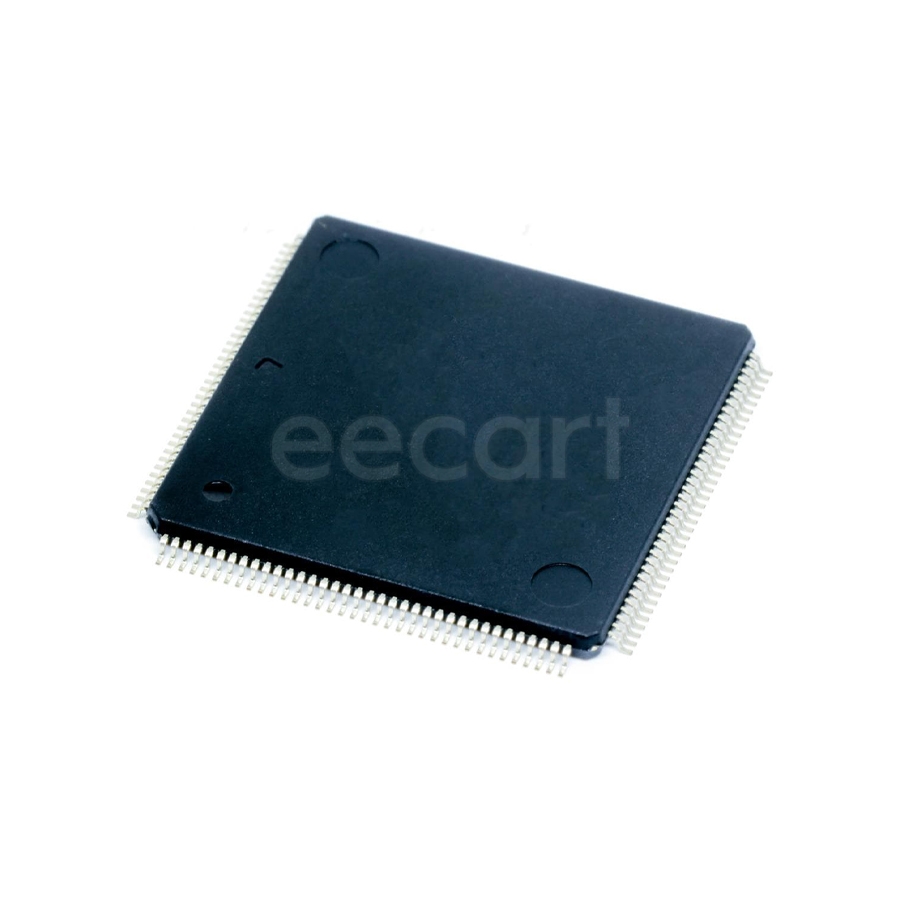

Embedded Processors and Controllers LQFP-144 SMD/SMT 16 bit TMS320
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Width | 20 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 144 |
| Height | 1.6 mm |
| Thickness | 1.4 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Frequency | 50 MHz |
| Core Architecture(core/core processor) | TMS320 |
| Memory Size | 8 kb |
| Operating Supply Voltage | 1.8 V |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.71 V |
| Number of Bits | 16 |
| Max Frequency | 50 MHz |
| RAM Size | 16 kB |
| Data Bus Width | 16 bit |
| Number of UART Channels | 0 |
| Schedule B | 8542310000 |
| RoHS | Compliant |
| Packaging | Tray |
| Type | DSP - Digital Signal Processors & Controllers |
| Data RAM Size | 16 kB |
| Max Clock Frequency | 50 MHz |
Stock: 62
Distributors
pcbx
pcbxUnit Price$5.74997
Ext.Price$5.74997
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.74997 | $5.74997 |
| 10 | $4.47090 | $44.70900 |
| 25 | $4.23690 | $105.92250 |
| 50 | $4.01514 | $200.75700 |
| 100 | $3.80499 | $380.49900 |
| 300 | $3.60580 | $1081.74000 |
| 500 | $3.52625 | $1763.12500 |
| 1000 | $3.44846 | $3448.46000 |
